Description

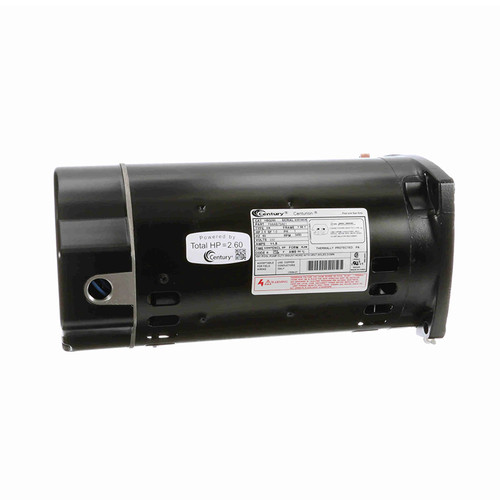

Century Centurion Pro HBQ260 Pool and Spa Pump Motor; 2.6HP, 230V, Y56YFR, Square Flange
Features
- Long lasting with Triple Seal protection to prevent water and debris intrustion
- Fast and easy installation with the open and accessible terminal board and wiring compartment
- Premium sealed 203 bearings both ends
- Definitive shaft access (7/16” wrench)
- Voltage change device
- Open dripproof
- Designed for optimal performance and efficiency
- Most durable and economical solution in the market today
Nameplate Specifications
| Phase: | 1 | Output HP: | 2.6 Hp |
| Output KW: | 1.9 kW | Voltage: | 230 V |
| Speed: | 3450 rpm | Service Factor: | 1 |
| Frame: | Y56Y | Enclosure: | Drip Proof |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 50 °C |
| Frequency: | 60 Hz | Current: | SF 11.5 A |
| Duty: | Continuous | Insulation Class: | F |
| UL: | Recognized | CSA: | Y |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor, Single Or Dual Voltage | Poles: | 2 |
| Rotation: | Counterclockwise Pump End | Mounting: | Round |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | 1/2 Thread |
| Frame Length: | 9.27 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 0.91 in |
General Specifications
| UPC: | 786674071439 | Weight: | 25.00 LB |
| Packaged Length: | 15.98 IN | Packaged Width: | 9.13 IN |
| Packaged Height: | 9.13 IN | Country of Origin: | Mexico |
