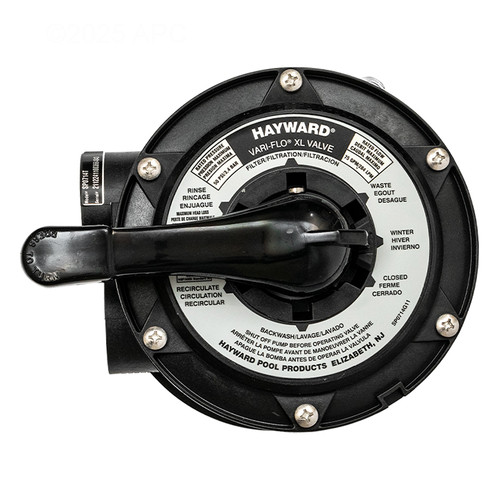

Hayward SP0714T Vari-Flo XL Top Mount Multi-Port Control Valve For Pro Series Sand Filter; 7-position 1-1/2 Inch, Black
This valve replaces: Hayward SP-711-13
This multiport valve is for replacement of the Hayward SP0714T Vari-Flo XL Valve*and it is used for Hayward Sand Filters such as S166T, S180T, S210T, S220T and S244T. It features an easy-to-use lever action handle that lets you dial up to seven functions: filter, backwash, waste, rinse, closed, winterize or recirculate. The ports are 1-1/2" FPT fittings.
Click Here for Replacement Parts Diagram
Product Features
- Reinforced thermoplastic material meets the demands of the toughest applications
- Hydro-engineered to provide superior flow at lower pressure drops, resulting in more efficient filtration at equivalent horsepower
- Rugged off-set ports for easy plumbing
- Ergonomically designed handle allows for simple dialing of the various valve positions
- Built-in sight glass for convenient backwash viewing
- Injection molded Noryl valve key assembly, with molded gasket for a continuously reliable seal
Functions
- Filter - Used 99.99% of the time. Used for normal filtering.
- Backwash - Used for cleaning the filter sand bed of accumulated debris. Water goes in reverse through the filter and out the waster port.
- Rince - Used after completing the backwash cycle to ensure all dirty water is rinsed out of the filter to waste.
- Waste - Water is passed through the valve to the waster port, by-passes the filter. Can be used for lowering pool water level, and for vacuuming heavy debris directly out the waste line
- Recirculate - Water is recirculated through the valve and back to the pool, by-passing the filter tank
- Closed - Closes the valve so no water can go through it.
- Winter - Used to winterize (SP0714T only)
Specifications
| Brand | Hayward |
| Closure Design | Clamp |
| Filter | Sand |
| Finish Color | Black |
| For Use With | Pro Series(TM) S140T/S144T/S180T/S210T/S220T/S220T2/S230T/S244T/S244T2/S270T/S164T/S166T Sand Filter |
| Item Name | Hayward Vari-Flo(TM) Multi-Port Control Valve |
| Material | Reinforced Thermoplastic |
| Mount | Top |
| Pipe Size | 1.5 Inch FIP |
| Positions | 7 |
| Standards Approvals | NSF Listed |
| Sub Brand | Vari-Flo(TM) |
| Type | Filter Parts and Accessories |
Used On
- Hayward ProSeries S140T S144T Sand Filter Series; S144T
- Hayward ProSeries S180T, S210T, S220T, S230T, S244T, S270T Sand Filter Series
- Hayward ProSeries S164T S166T Sand Filter Series
- Hayward VL210 Series Sand Filter Series
- Hayward S245T S190T GM195 GM225 GM245 Sand Filter Series
- Hayward SP0704 Multiport
- Hayward SP0714T Vari-Flo XL Valves
- Hayward Swim Pro Sand Filters
