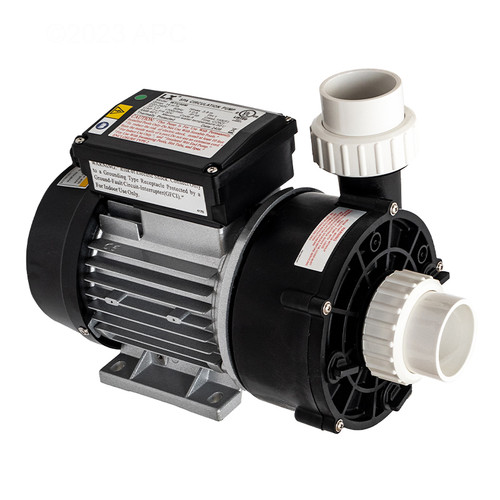

LX Pump WTC50M (Standard) LX Circulation 1/5 HP 230V 1A (1.5" STANDARD SNOUT)
The LX Pump LX CIRC 1/5 HP 230V 1A, WTC50M (Standard) is a circulation pump designed for spa and hot tub applications.
This WTC50M‑STANDARD model is a single‑speed circulation pump commonly used as a 24‑hour circ pump in spas, hot tubs, and small swim spas. It runs on 230V at roughly 1 amp, delivering around 0.33–0.35 HP (often listed as 1/5 or 1/15 HP) through a small LX‑frame motor with 1.5" side‑discharge plumbing.
Specifications
- Horsepower: 1/5 HP
- Voltage: 230V
- Amperage: 1A
- Plumbing Size: 1.5" Standard Side Discharge
- Flow Rate: Up to 35 gallons per minute (GPM)
- Frequency: 60Hz
- Plug Type: 115V wall style plug (Note: Cannot be used on that style wall plug directly, may require modification)
Electrical and Connection Notes
Some WTC50M 230V circulation pumps ship with a 115V‑style cord end used by certain spa control systems; this plug cannot be used in a regular 115V wall outlet and may need to be adapted or hard‑wired into the spa pack wiring. The standard‑snout version on EZ Pool & Spa Supply is meant for 1.5" side‑discharge plumbing, not the longer‑thread Sundance‑specific WTC50M‑USA variant.
