Description

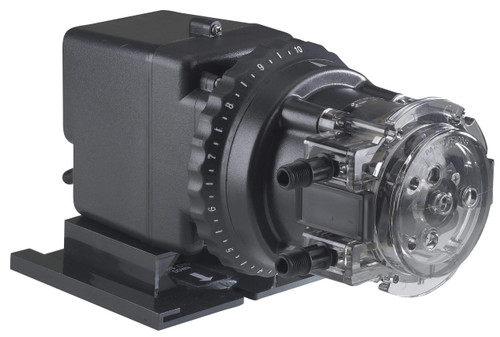

Stenner Pumps 45MFL5A1SUAA Classic 45MP5 Single Head Fixed Output Pump 50GPD 25PSI 120V 60Hz .25" White Suction/Discharge

Works Well with Controllers

The Single Head Fixed Output injection pump is one of the varieties in the Classic Series identified by 45MF or 85MF in the item number prefix.

This peristaltic metering pump injects solutions at a fixed rate and can be utilized as a component for proportional dosing for drinking water disinfection for animal health or residential applications. It can also be installed with a controller for sanitizing a swimming pool. Great news for installers in the commercial pool industry, the Classic Series single head fixed pump has been tested by ETL to conform to the ANSI/NSF standard 50 when used with ANSI/NSF 50 listed controllers. Additional applications include pH control, oxidation, corrosion and scale control and more.

The pump is also a component of Stenner’s pre-assembled panel system the Proportional Injection System. The Proportional Injection System doses solution proportional to a water system’s flow rate based on the water volume. A water meter sends a signal to Stenner’s PCM which actuates the fixed output pump. The system is suited for constant pressure (variable speed) well pumps, poultry and livestock houses, irrigation and systems with demand based backup wells and any application with varying flow rates.

If a pre-assembled system isn’t your preference, the pump, PCM and water meter are also available separately. Refer to the chemical resistance guide to determine the compatibility of the wetted components with the solution you want to pump or contact us.

Features

Convert one model to another; not necessary to purchase a new pump.
Tube replacement without tools with the patented QuickPro® pump head.
The pump is built with two detachable components; the motor and the pump head that can be separated without tools.

How It Works

The output is not adjustable and is determined by the rpm of the motor gears and the size of the pump tube. The motor’s output shaft rotates at a fixed rpm which drives the roller assembly within the pump head.
