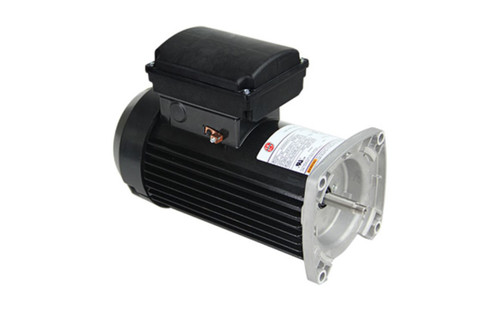

U.S. MOTORS Aqua-Shield Pro TEQ165 Pool/Spa Pump 48Y TEFC Square Flange Motor 1.65THP 115/208-230V
The U.S. MOTORS TEQ165 is an AQUA-SHIELD PRO Pool/Spa Pump 48Y TEFC Square Flange Motor. It runs at 1.65THP and 115/208-230V. Square Flange Pump Motors are the most common motor frame used today. These frames attach directly to the pump.
The U.S. Motors Aqua‑Shield Pro TEQ165 is a 1.65 THP, TEFC, 48Y square‑flange pool/spa pump motor designed as a high‑durability, moisture‑sealed replacement for Pentair, Jandy, and Waterway pumps that use a 48Y square‑flange wet end. It runs on 115V or 208–230V and is built for harsh environments.
-
Total HP: 1.65 THP (1.25 HP uprated)
-
Frame: 48Y
-
Flange: Square‑flange (C‑flange) — fits most modern inground pumps
-
Enclosure: TEFC (sealed, IPX5 moisture protection)
-
Voltage: 115V or 208–230V
-
Rotation: CCWPE (counter‑clockwise pump end)
-
Bearings: Oversized sealed ball bearings
-
Housing: Aluminum finned body for heat dissipation
-
Duty: Continuous
-
Use Case: Inground pool pumps, spa pumps, saltwater systems, harsh environments
