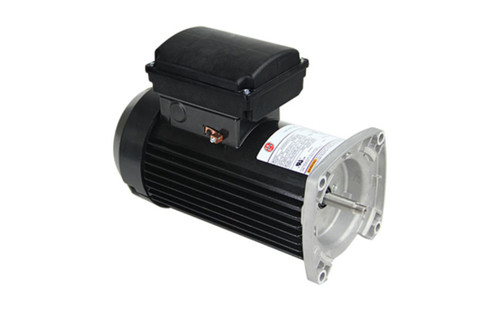

U.S. MOTORS Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.7THP 208-230V, TEQ270

U.S. MOTORS Aqua-Shield Pro TEQ270 Pool/Spa Pump 48Y TEFC Square Flange Motor 2.7THP 208-230V

The U.S. MOTORS TEQ270 is an AQUA-SHIELD PRO Pool/Spa Pump 48Y TEFC Square Flange Motor. It runs at 2.7THP and 208-230V. Square Flange Pump Motors are the most common motor frame used today. These frames attach directly to the pump.

Specifications

Electrical

• Voltage: 208–230V

• Phase: Single‑phase

• Frequency: 60 Hz

• Amperage: Typical for 2.7 THP motors (varies by pump load)

Horsepower

• Total HP: 2.7 THP

  • This typically corresponds to a 2.0 HP uprated motor

  • Matches many high‑flow inground pool pumps

Frame & Mounting

• Frame: 48Y

• Mounting: Square‑flange (4‑bolt pattern)

• Shaft: Threaded stainless‑steel shaft

• Use Case: Inground pool pumps, spa pumps, high‑flow systems
