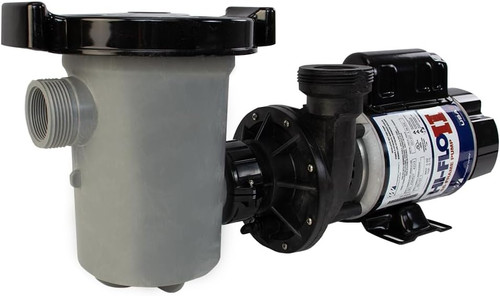

Waterway HI-Flo II 3/4 THP Top Discharge Pump for Above Ground Pool, SD-07-1N

Waterway SD-07-1N HI-Flo II 3/4 THP Top Discharge Pump for Above Ground Pool

The Waterway SD‑07‑1N is a 3/4 THP, top‑discharge, Hi‑Flo II above‑ground pool pump designed for small to medium above‑ground pools. It’s known for strong flow, quiet operation, and easy serviceability.

Specifications

Model: SD‑07‑1N

Series: Hi‑Flo II (Above‑Ground)

Horsepower: 3/4 THP (Total Horsepower)

Discharge Orientation: Top discharge

Voltage: Typically 115V (most AG pumps)

Pump Type: Single‑speed

Motor Frame: 48Y (common for AG pumps)

Features:

• Large strainer basket

• Clear lid for easy debris inspection

• High‑flow wet end for above‑ground pools

• Corrosion‑resistant construction

  Compatibility

This pump is commonly used on:

• Above‑ground pools up to 18'–24' round

• Cartridge or sand filter systems

• Systems requiring top‑discharge plumbing

• Replacements for older Waterway Hi‑Flo or Hi‑Flo II pumps

If you tell me your filter model or existing pump label, I can confirm compatibility.

  Replacement Notes

If you’re replacing an existing Hi‑Flo II pump:

• The wet end and unions are usually compatible across HP sizes

• The SD‑07‑1N may be replaced by newer Waterway models such as:

  • SD‑10‑1N (1.0 THP)

  • SD‑05‑1N (0.5 THP)

• Waterway often re‑labels pumps for pool brands, so your pump may have a different sticker but the same internals

  Installation Notes

• Top‑discharge pumps are ideal when plumbing rises directly into the filter

• Always replace the pump‑to‑filter o‑ring when swapping pumps

• Check amperage compatibility with your existing circuit
