What Is Equipotential Bonding and Why Is It Needed?

CMI 3' x 100' Copper Equipotential Bonding Grid With Kit, EB3100: Reliable Protection for Pool Safety

Safety and code compliance are essential considerations for any pool installation or renovation. The CMI 3' Wide x 100' Copper Equipotential Bonding Grid with Kit (EB3100) has been designed to address these needs, providing a robust solution for equipotential bonding around in-ground swimming pools. This article outlines the benefits and features of this product, highlighting its importance for homeowners, contractors, electricians, and trade professionals.

What Is Equipotential Bonding and Why Is It Needed?

Equipotential bonding is the process of connecting all metallic components and conductive elements in and around a swimming pool to ensure that electrical potential remains equalized. This prevents dangerous voltage differences, also known as stray voltage, which can pose a risk of electric shock to anyone in contact with the pool or its surroundings. By creating an electrically continuous grid, equipotential bonding helps eliminate voltage gradients between the pool water, deck, and metallic equipment, thus enhancing safety for everyone.

Product Overview: CMI EB3100 Bonding Grid Kit

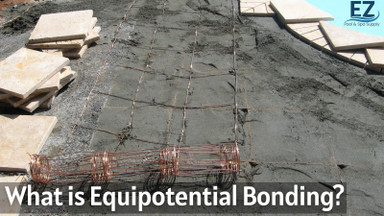

The CMI EB3100 kit is engineered to meet the requirements for proper equipotential bonding for pool installations. The grid is intended to be installed underneath the paved surface, extending 3 feet out from the inside edge of the pool, providing comprehensive coverage as required by code.

Key Features and Benefits

• Complete Kit for Easy Installation: The kit includes high-quality hardware, a direct burial ground clamp, #8 split bolts for secure connections at all corners, and metal stakes to hold the grid in place. The design allows for one-person installation, making the process efficient and manageable for both professionals and DIY enthusiasts.

• Durable Construction: The grid is constructed from exothermically welded #8 solid copper with 12-inch spacing, ensuring long-lasting conductivity and corrosion resistance. This robust material selection supports reliable bonding performance over the life of the pool.

• Flexible Sizing: The 3-foot by 100-foot roll is suitable for pools with beams less than 12 inches wide. For pools with a 12-inch beam, a 2-foot wide roll is also available, ensuring code compliance in various construction scenarios.

• Code Compliance: The product fully meets industry standards, providing peace of mind that installations will pass inspection and protect against legal or safety liabilities.

• Enhanced Safety: By equalizing electrical potential, the grid protects against lethal stray voltage that can occur due to electrical faults or grounding issues, safeguarding pool users and nearby individuals.

How the Grid Works

When installed, the copper grid forms a conductive network beneath the pool deck. This network is bonded to all metallic elements, such as reinforcing steel, ladders, handrails, and pool equipment, ensuring that any stray voltage is safely dissipated and does not accumulate in localized areas. The result is a safer environment where the risk of electrical shock is minimized.

Testing and Validation

Proper installation can be validated using standard equipotential bonding assessment procedures. Voltage measurements between the pool water, deck, and bonded elements should be consistent and within safe limits, confirming that the grid is functioning as intended.

Who Should Use This Product?

• Homeowners: Assurance of safety for family and guests, with a product that meets the highest industry standards.

• Contractors and Electricians: Streamlined installation, reliable code compliance, and reduced risk of callbacks or inspection failures.

• Trade Professionals: Confidence in specifying a product that is durable, effective, and easy to install, with all necessary components included.

Conclusion

The CMI 3' Wide x 100' Copper Equipotential Bonding Grid with Kit (EB3100) offers a dependable, code-compliant solution for pool safety. Its comprehensive design, ease of installation, and robust construction make it an ideal choice for anyone involved in pool construction or renovation. By ensuring equal electrical potential around the pool, this product helps create a safer environment for all users.
