Description

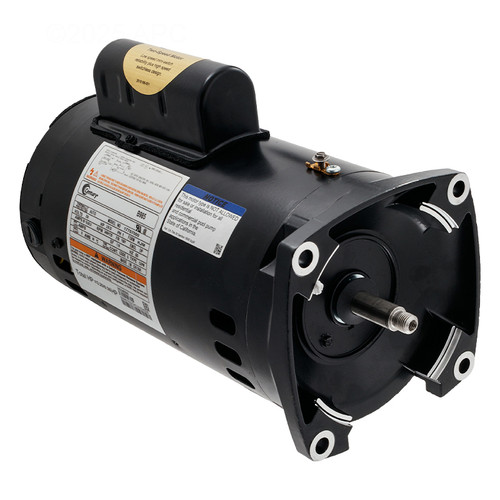

Century(R) USQ1202 Square Flange Up-Rated Two-Compartment Pool Filter Motor; 2 HP; 3450 RPM; 230 V; 48Y; Threaded Shaft
Features
- Service Factor: 1.1
- 10.4
- Open Drip Proof
- 2-Compartment Square Flange
- 50 Degrees C
- 303 Stainless Steel Threaded Shaft
- Auto Protect
Used On
- Jacuzzi Cygnet and Cygnet II Pump Parts
- Jandy MHP/MHPU Pump Parts
- Sta-Rite Dyna-Jet Pump Parts
- Sta-Rite Dyna-Pro and Dyna-Pro E Pump Parts
- Sta-Rite Max-E Glas and Dura-Glas Up-Rated Pump Parts
- Sta-Rite Max-E Glas II and Dura-Glas II Up-Rated Pump Parts
- Sta-Rite Max-E Pro Series Pump Parts
Specifications
| Ambient Temperature | 50 deg C |
| Application | Many Sta-Rite®, Red Jacket, Pac Fab and American Products |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | High |
| Enclosure Design | Open Dripproof |
| Finish Color | Black |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 10.4 A |
| HP | 2 |
| Insulation Class | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start/Run |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 13.25 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.10 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 2.1 |
| Type | Up-Rated, UAK |
| Voltage Rating | 230 V |
