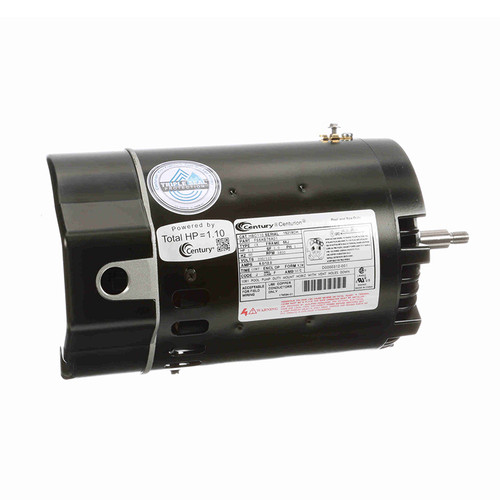

Century Centurion Pro HBC110 Pool and Spa Pump Motor; 1.1HP, 115/230V, 56FR, C-Face
HBC110 is a Century / Regal Beloit 1.1 HP pool pump motor — a single‑speed, 56J‑frame, 115/230V replacement motor used on many Hayward, Pentair, and Sta‑Rite pumps
- Long lasting with Triple Seal™ protection to prevent water and debris intrustion
- Fast and easy installation with the open and accessible terminal board and wiring compartment
- Premium sealed 203 bearings both ends
- Definitive shaft access (7/16” wrench)
- Voltage change device
- Open dripproof
- Designed for optimal performance and efficiency
- Most durable and economical solution in the market today
Specifications
| Phase: |
1 |
Output HP: |
1.1 Hp |
| Output KW: |
0.82 kW |
Voltage: |
230/115 V |
| Speed: |
3450 rpm |
Service Factor: |
1 |
| Frame: |
S56J |
Enclosure: |
Drip Proof |
| Thermal Protection: |
Thermally Protected |
Ambient Temperature: |
50 °C |
| Frequency: |
60 Hz |
Current: |
SF 6.0/12.0 A |
| Duty: |
Continuous |
Insulation Class: |
F |
| UL: |
Recognized |
CSA: |
Y |
| Number of Speeds: |
1 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor, Single Or Dual Voltage |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Counterclockwise Pump End |
| Mounting: |
Round |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Ball |
Opp Drive End Bearing: |
Ball |
| Frame Material: |
Rolled Steel |
Shaft Type: |
7/16 Thread |
| Overall Length: |
12.73 in |
Frame Length: |
6.38 in |
| Shaft Diameter: |
0.625 in |
Shaft Extension: |
2.57 in |
General Specifications
| UPC: |
786674071460 |
Weight: |
25.00 LB |
| Packaged Length: |
14.17 IN |
Packaged Width: |
9.13 IN |
| Packaged Height: |
9.13 IN |
Country of Origin: |
Thailand |
