Description

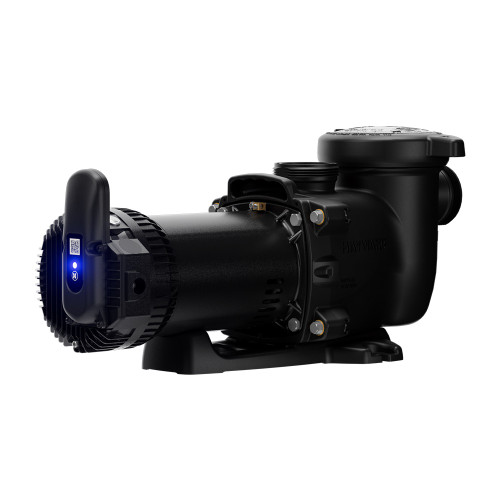

Hayward MaxFlo VSP23420 VS 420 Variable Speed Pump with Omnix
VS Omni variable-speed pool pumps are the easiest, most affordable way to add convenient scheduling and smart control to existing pools and spas. VS Omni controls virtually every kind of pool and spa equipment, including pumps, heaters, lighting, sanitization, water features and more.
Features
Adjustable speed options create powerful cost savings without a lot of hassle. And with easy installation and dual-voltage capability, MaxFlo XE is the best way to install an affordable pump that complies with Dept. of Energy regulations in any new or existing pool.
- Industry-leading efficiency exceeds DOE benchmarks and performance of many competitive VS pumps
- Easily programmable with up to 6 selectable speeds
- Easy-access control toggles between speeds at the touch of a button
- Dual-voltage capability (230V/115V) for versatile installation
- Simple installation with shorter length than smaller models, standard 1.5" x 2" unions and no additional equipment requirements
Specifications
| Brand | Hayward |
|---|---|
| Channel | Open Line |
| DOE Compliant | Yes |
| GTIN | 610377448987 |
| Labor Warranty | None |
| Master Carton Qty | 1 |
| Motor Type | ODP |
| Number of Speeds | Multi Speed |
| Parts Warranty | 1-year |
| Phase | Single Phase |
| Pool Type | In Ground |
| Quick Clean Button | No |
| Remote Mount Display | No |
| Rotatable Display | No |
| Shipping Dimensions | 13.4 " x 9.9 " x 31 " |
| Shipping Height | 13.4 in |
| Shipping Length | 31 in |
| Shipping Weight | 33.6 lb |
| Shipping Width | 9.9 in |
| Total HP | 2.25 HP |
| Twist Lock | No |
| Voltage at 60 Hz | 230/115 |
| WEF | 8.4 / 8.7 |
