Hayward Perflex DE Filter 20 Sq. Ft. with 1HP PowerFlo Matrix Pump Combo, W3EC40C92S

Mfg #:
(No reviews yet) Write a Review
Current Stock:
Only 12 Left!
  • Free Ground Shipping on Orders Over $99
  • Typically Ships in 1 to 2 Business Days

Hayward W3EC40C92S Perflex(R) EC40 Series Extended-Cycle DE Filter System with Base and Hose Kit; 20 sq-ft, 1 HP PowerFlo Matrix Pump

Perflex filters are performance matched with our above-ground pump series to ensure a system that maximizes its filtration ability. These advanced filtration systems are designed to operate with less resistance than conventional units, producing more filtered water with less pump horsepower. Quality, value, dependability and sparkling clear pool water are the Perflex system trademarks.

  • Cleans pools fast - removes even the smallest particles the first time through
  • Patented Flex-Tube system efficiently reuses DE powder and dirt mixture to form fresh cleaning surfaces
  • Exclusive bump handle activates the Flex-Tubes, causing them to instantly purge themselves of dirt and powder
  • Pump-to-filter union connection provides simple installation and winterization
  • Modular platform base accepts optional chlorine feeder
  • Quick-connect union


Application For large above-ground pools
Brand Hayward
Dimensions 16 inches W x 26.5 Inches H
Filter EC40AC
FilterElement Diatomaceous earth (D.E.) filter
FiltrationArea 20 sq-ft
FlowRate 43 gpm
HP 1
ItemName Hayward Perflex(R) EC40 DE Filter System with Base and Hose Kit
Media Diatomaceous Earth
MediaRequired 4 lbs

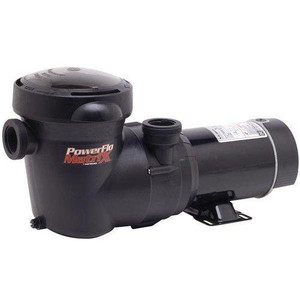

Pump PowerFlo Matrix
SubBrand Perflex(R) EC40
Turnover 19200 gal at 8 hrs, 24000 gal at 10 hrs
Type Above Ground Pool Filters



Install Guide
